SMALL 23.4 L FOOTPRINT, HUGE COOLING POTENTIAL
With increasing PC component sizes and the need to dissipate heat more efficiently, SFF system builders must rethink how they build their future systems. Getting the most out of the new generation of CPUs and GPUs requires massive cooling solutions such as 360mm AIOs, custom loops, and large air coolers. The case design is optimized for growing component sizes while keeping the case footprint small.
UNRESTRICTED AIRFLOW & DIRECT GPU COOLING
Vault is designed to keep your components cool by utilizing an effective negative air pressure layout. The small case size and large front panel perforation enable a fast airflow rate. GPU gets cooled with unrestricted air intake, and rear fans exhaust hot air rapidly.

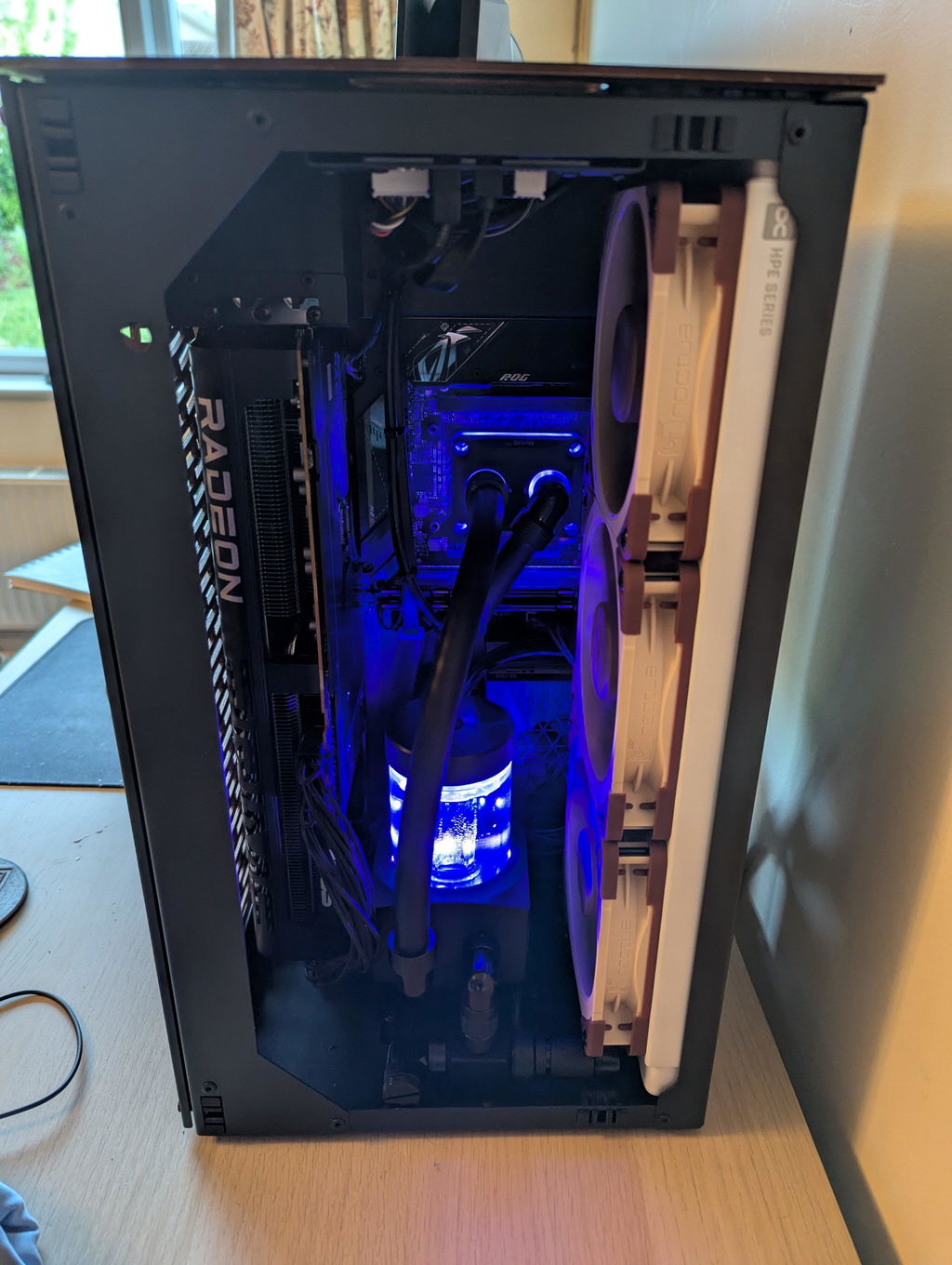

EASY TO BUILD IN, TOOLLESS ACCESS TO COMPONENTS, NO GPU SAG
Spacious interior design and carefully planned component layout make installing large components easy. All panels are easily removable without needing any tools. Vertical GPU placement and reinforced case design provide a permanent fix to sagging GPUs.

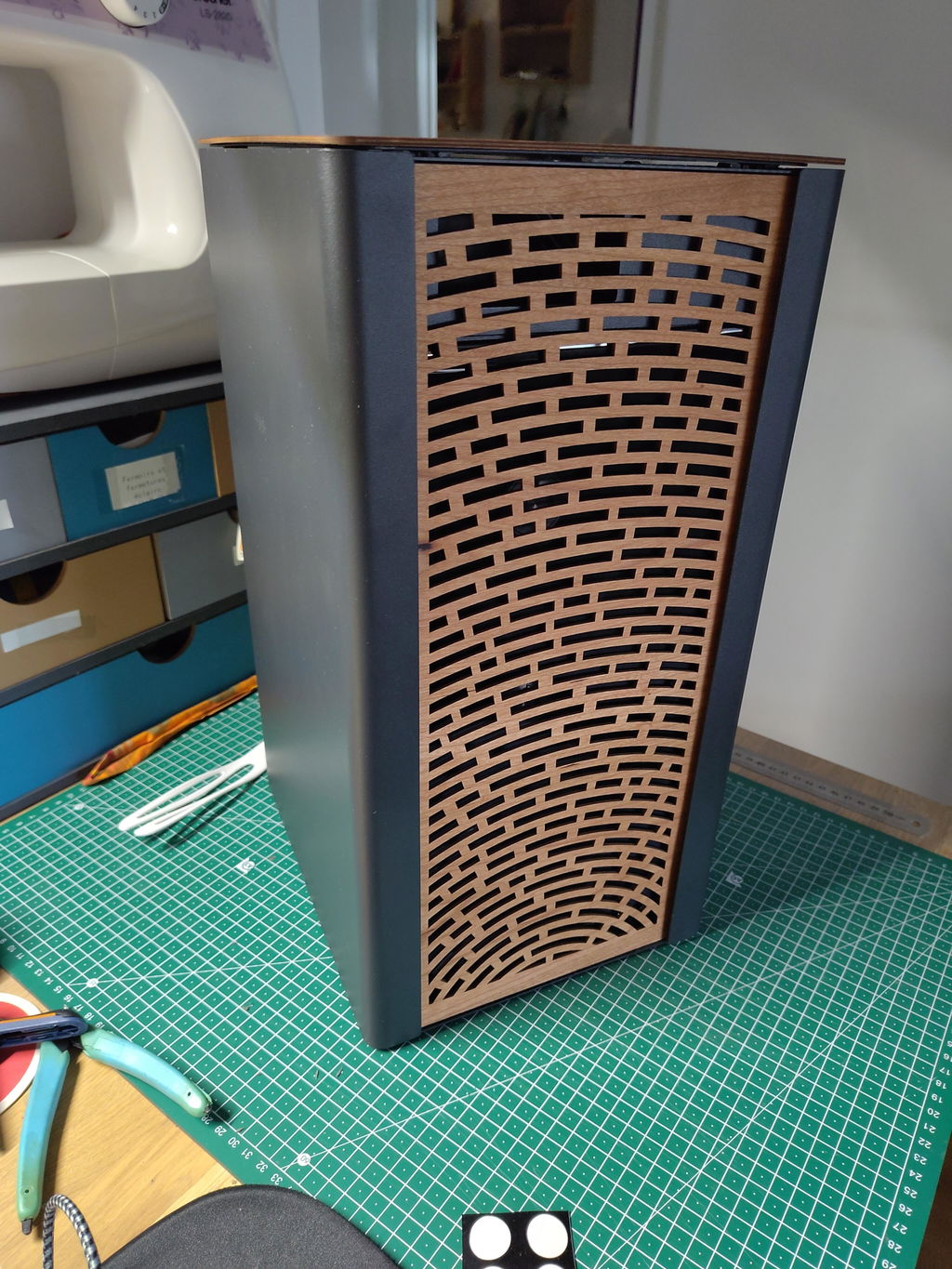

MODULAR DESIGN & REAL WOOD PANELS
Modular design allows you to route your peripheral cables from the top or bottom of the case. The case includes a metallic cable routing panel that helps route cables neatly. The case exterior has sleek, nature-inspired aesthetics with real wood panels making the case look like a piece of art on your desktop.
Dimensions | Width x Depth x Height |
220 x 256 x 429 mm (23.40 l) |
Motherboard support | Mini-ITX | |
Expansion slots | 3 | |
Legacy drive support | With HDD tray kit (sold optionally) |
1 x 2.5" drive without the HDD-kit 3 x 2.5" drives or up to 2 x 3.5" drives (depending on 3.5" drive height) |
Liquid cooling support | AIO | 1 x 360/280/240/140/120 mm radiator |
Custom radiators | 1 x 120/240/360 mm radiator (max length 413 mm / max width 125 mm) | |
1 x 140/280 mm radiator (max length 344 mm / max width 145 mm) | ||
Pump | Pump hole pattern 50 x 50 mm | |
Fan support | Rear | 3 x 120 mm / 2 x 140 mm |
Component support | GPU |
Up to 3.0 slots (65 mm) wide with a dust filter (max length 350 mm) Up to 3.5 slots (72 mm) wide without a dust filter (max length 340 mm) |
CPU cooler | Max height 195 mm | |
Memory |
Max height 70 mm when using 120/240/360 mm radiators Max height 55 mm when using 140/280 mm radiators |
|
Power supply | SFX, SFX-L | |
Weight without package | Kilograms | 5.0 kg |
Weight with package | Kilograms | 6.0 kg |
Package dimensions | Width x Depth x Height | 260 x 296 x 469 mm |
Front I/O panel | 1 x USB 3.1 Type-E 10Gbps to Type-C, 1 x USB 3.0, 1 x Combo Audio, Power switch with all-in-one pin connector | |
Included accessories |
Screw kit, cable ties, and metal cable management panel HDD tray kit and dust filter kit are sold as optional accessories |
Notice:
We do not ship HDD or dust filter accessory kits individually. Please select the needed accessories carefully before purchasing the case.
We sell our products tax-free (VAT 0%) to countries outside the EU tax zone. The final order price will only update at final checkout.
If you are unsure of the component compatibility, do not see your country listed, or want a custom order, please email us at sales@cubeor.com or use the "chat with us button." We respond to all inquiries in one business day.
